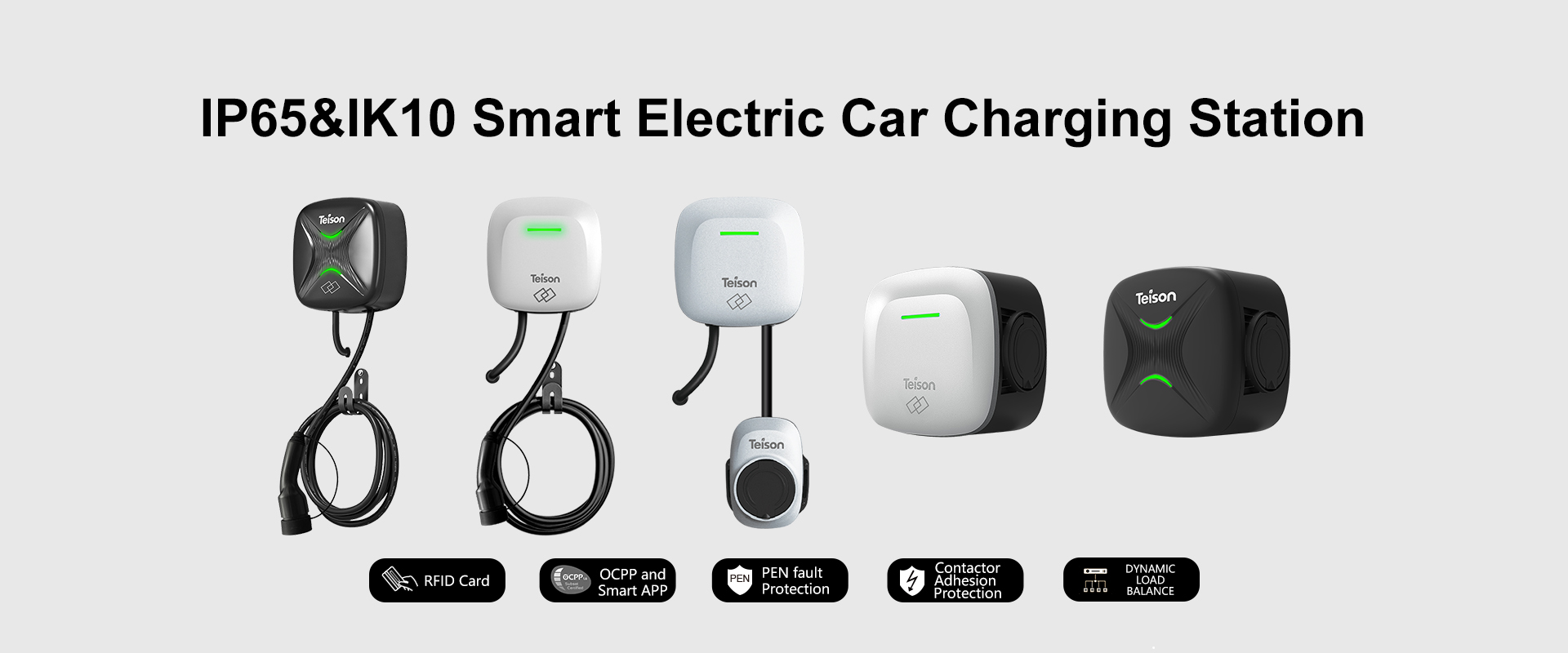

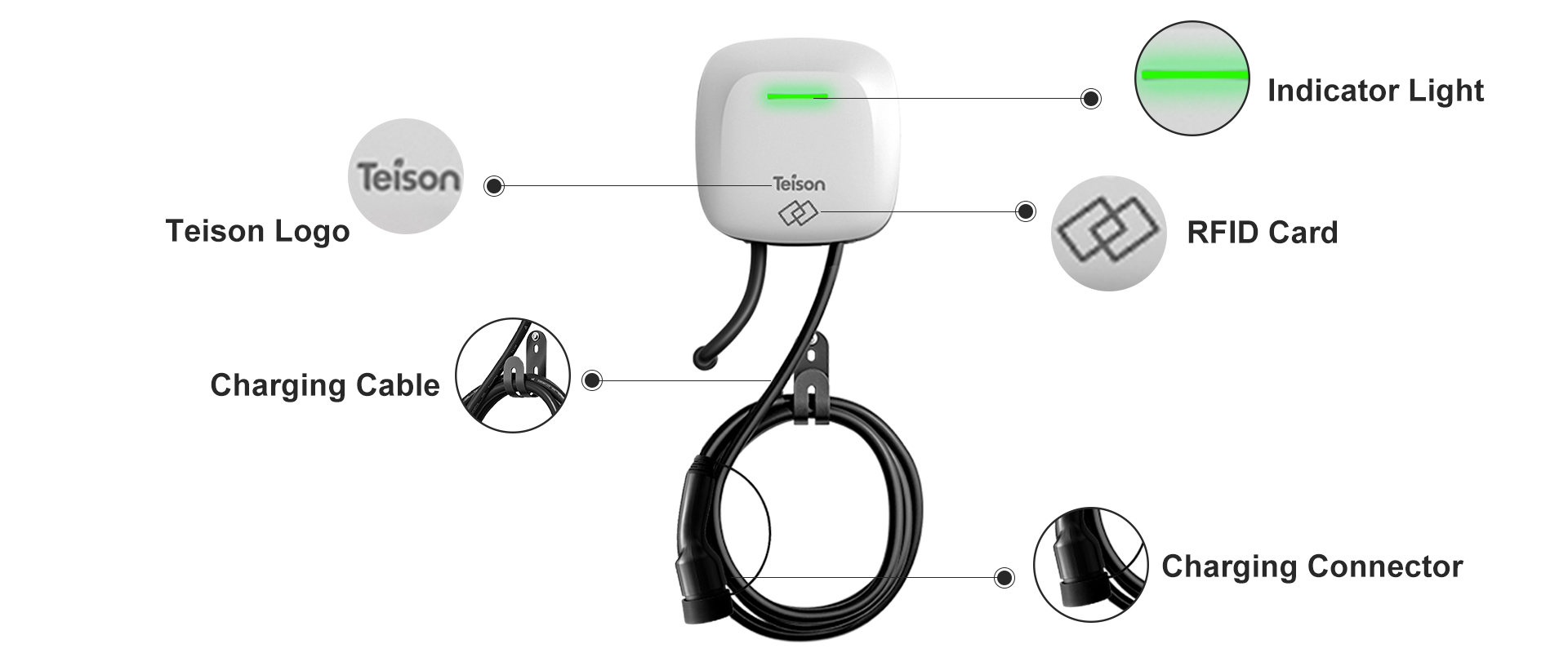

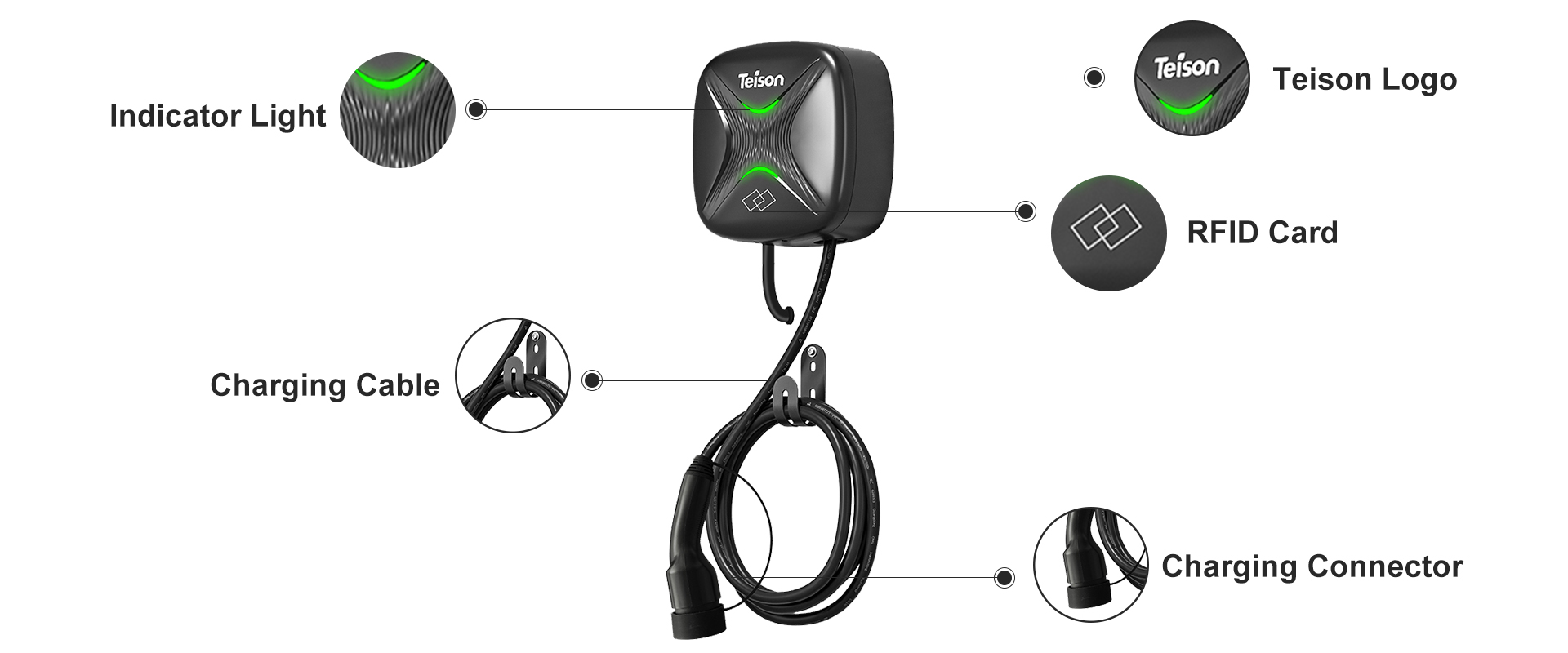

AC Smart mini EV Wallbox with plug
Mobile App Control(Bluetooth, Wi-Fi, 4G)
RFID Card (with Electricity Usage Metering)
OCPP1.6J
Single Load Balancing (via CT Clamp or Specific Model 485 Electricity Meter)
Solar Energy Excess Charging Function
Local Whitelist (Off grid RFID Card Swiping)
Full Protection
‹
›
‹
›

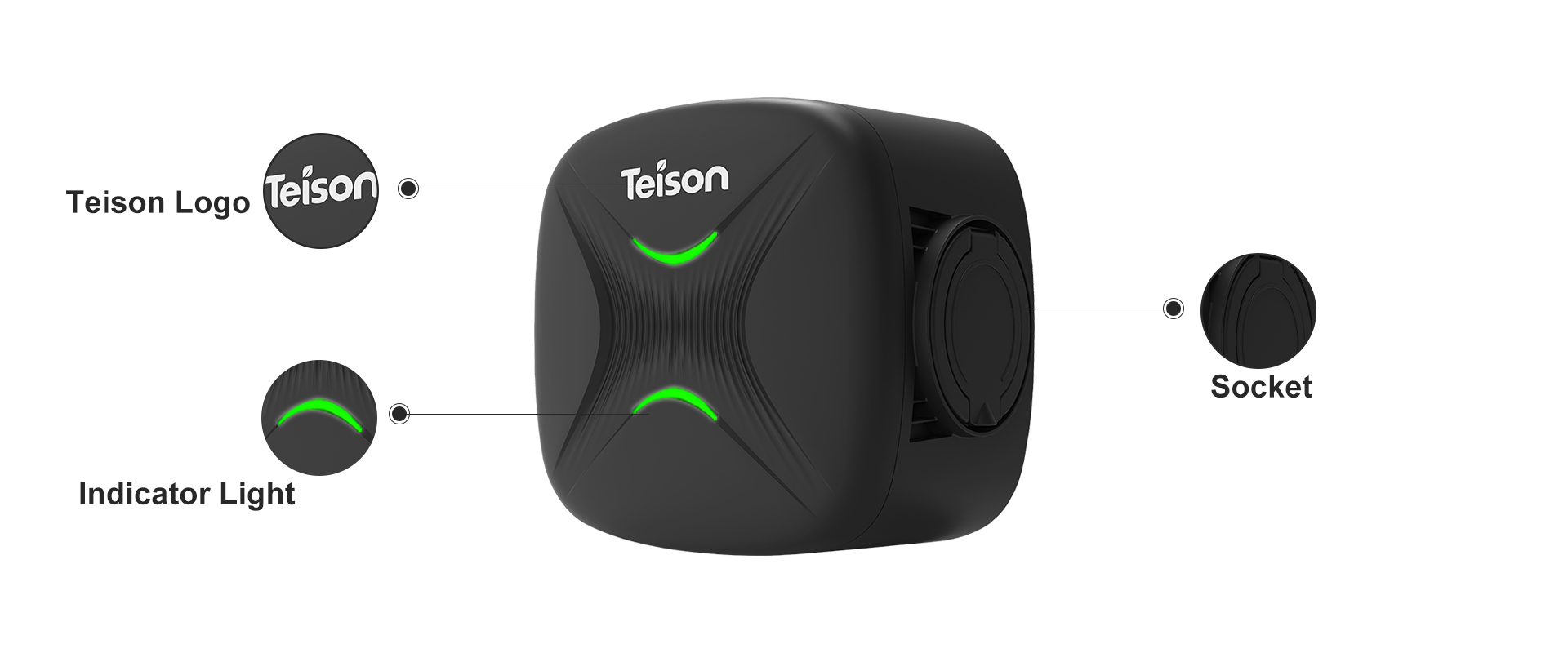

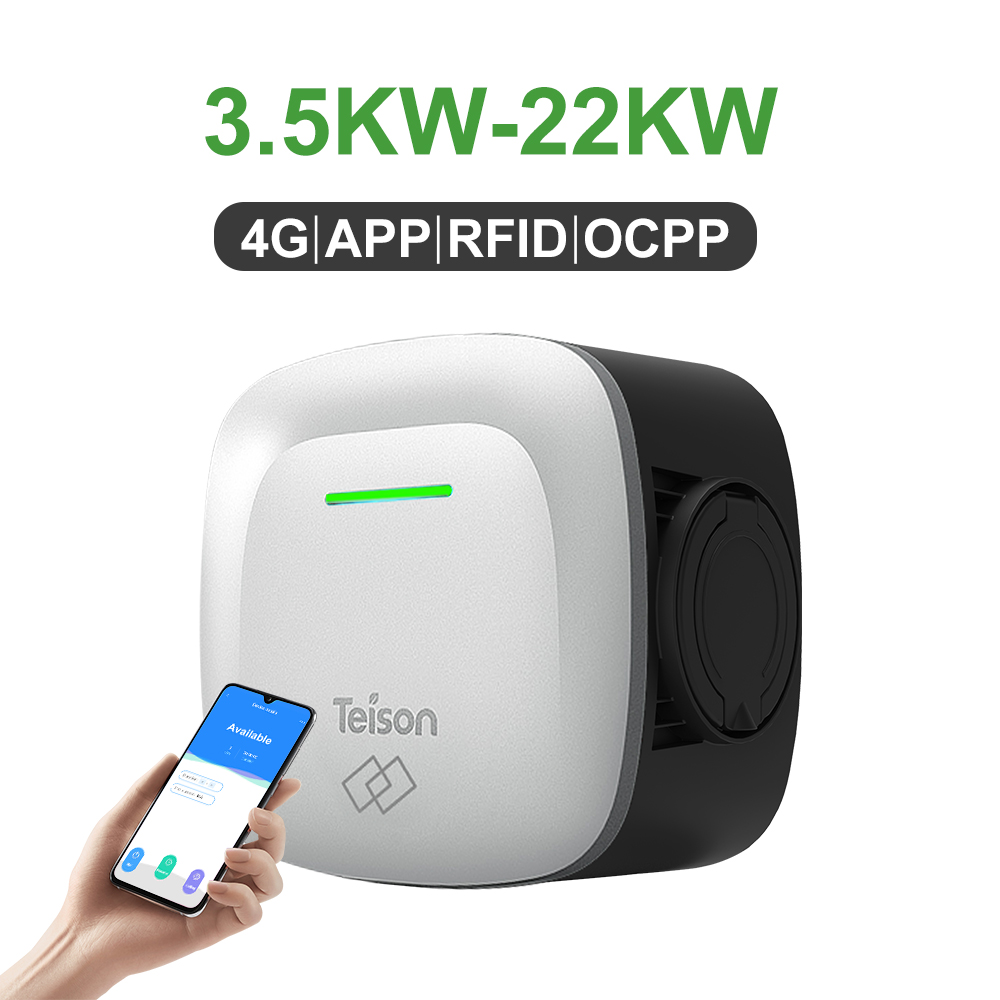

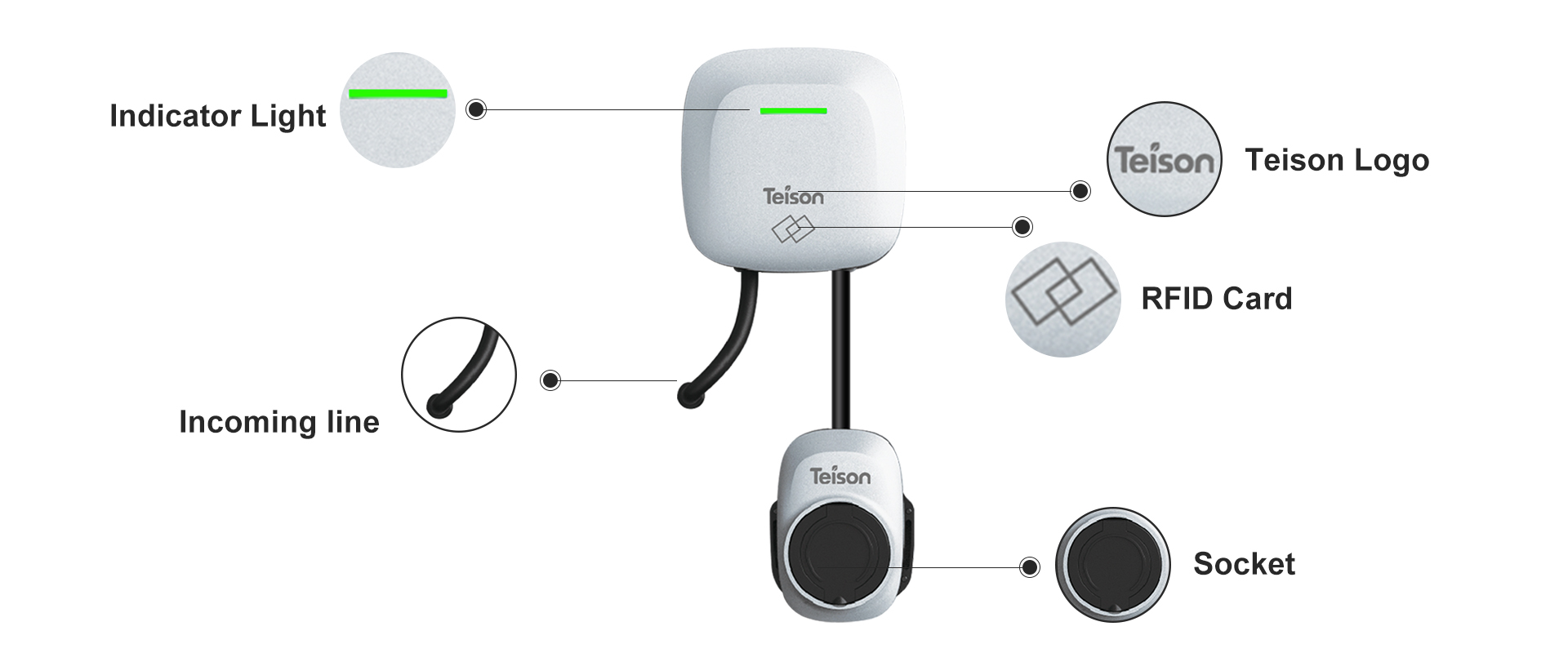

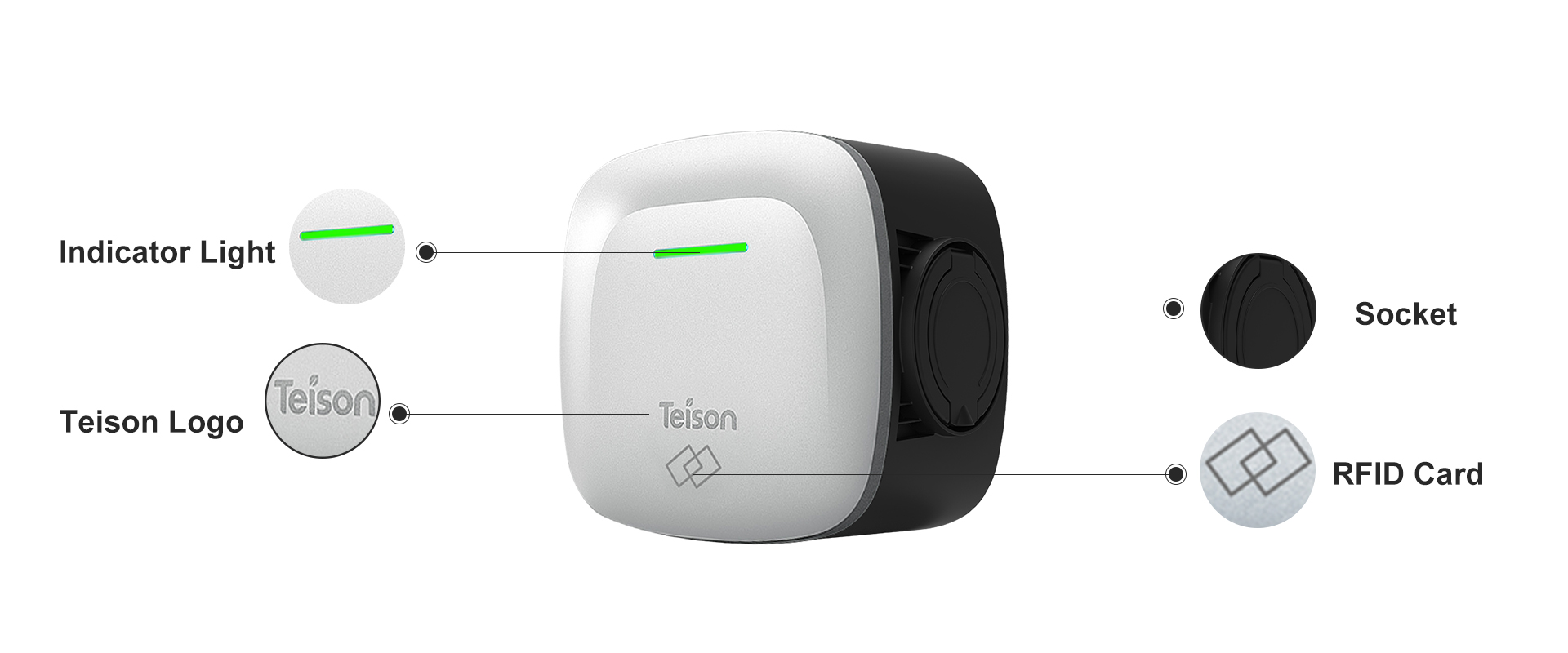

AC Smart mini EV Wallbox with Socket
1-Phase from 3.5kW to 7kW
3-Phase from 11kW to 22kW
Dial Function (Current Limitation)
Plug-and-Charge without Smart Version
Ethernet Interface
OCPP1.6J
Full Protection
FEATURES/ADVANTAGES
A MODE 3 (IEC61851-1) SMART EV CHARGER FOR RESIDENTIAL USE
Teison EV charger has an IP65 patented design case for outdoor and indoor use, and smart mini but powerful and easy to operate .
The type 1/2 plug socket makes highly flexible and compatible with all electric vehicles.

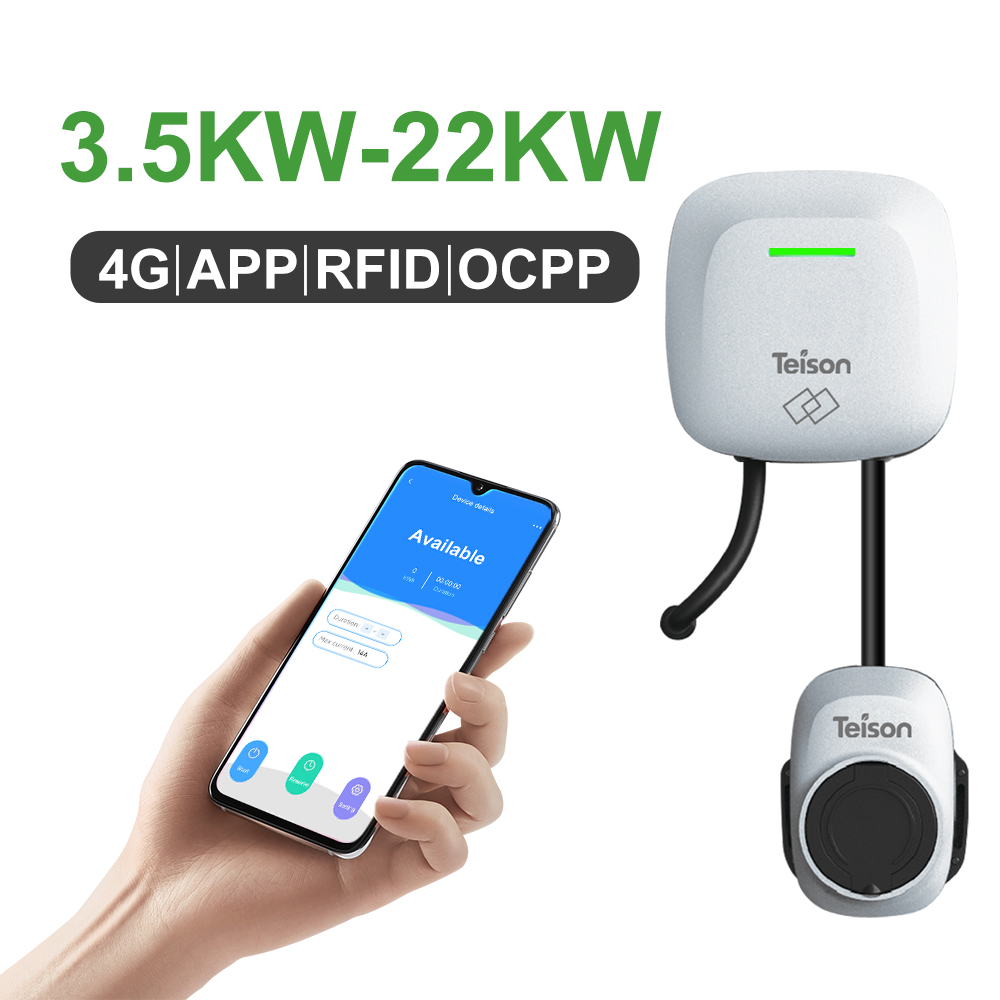

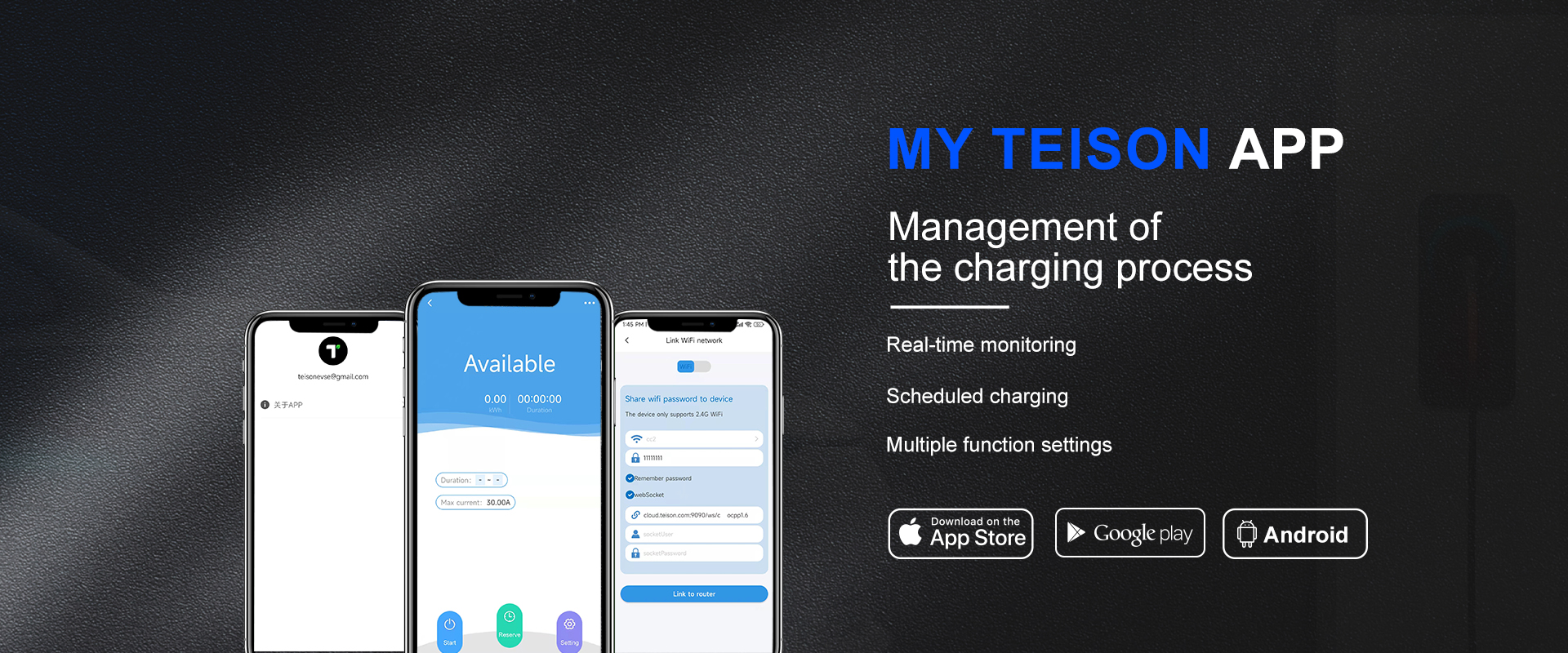

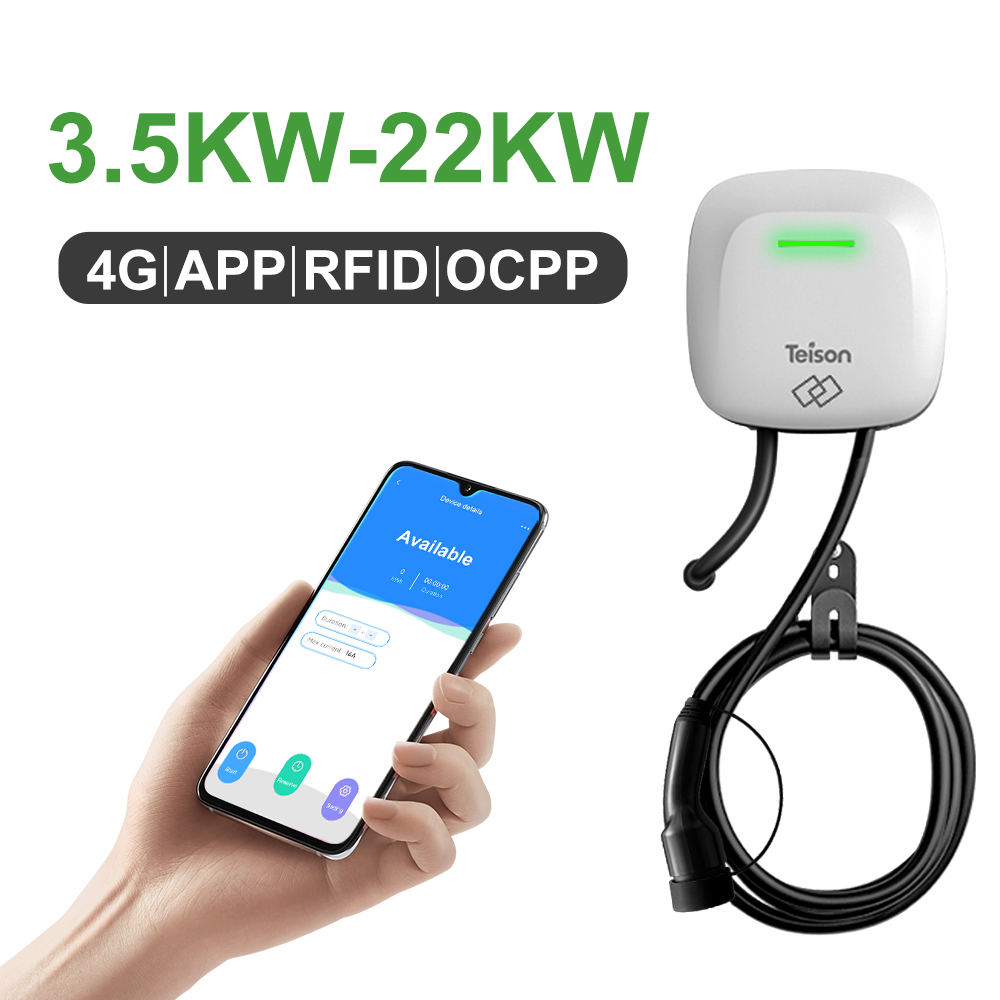

Control your smart wall box through MyTeison App by Bluetooth, WIFI and 4G:
Developed based on OCPP 1.6 J-SON
Automatic identification
Max charging Current adjustable
Remote reach out of every charging process
Charging records in Cloud
Scheduled charging to save on your electricity bill
OTA for new features
Parameter
| Specification | |||
| Model | Teison Smart Mini | ||
| Electrical Properties | |||
| Voltage | 230V AC±10% | 380V AC ±10% | 380V AC ±10% |
| Output Current | 32A | 16A | 32A |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Output Power | 7kw | 11kw | 22kw |
| Residual current protection | TYPE A(30mA AC) | ||
| Design | |||
| Charging Outlet | 4.5M charging cable with typel/2 plug or type2 socket | ||
| Power incoming line | 0.5M | ||
| Housing Material | PCVO for outdoor | ||

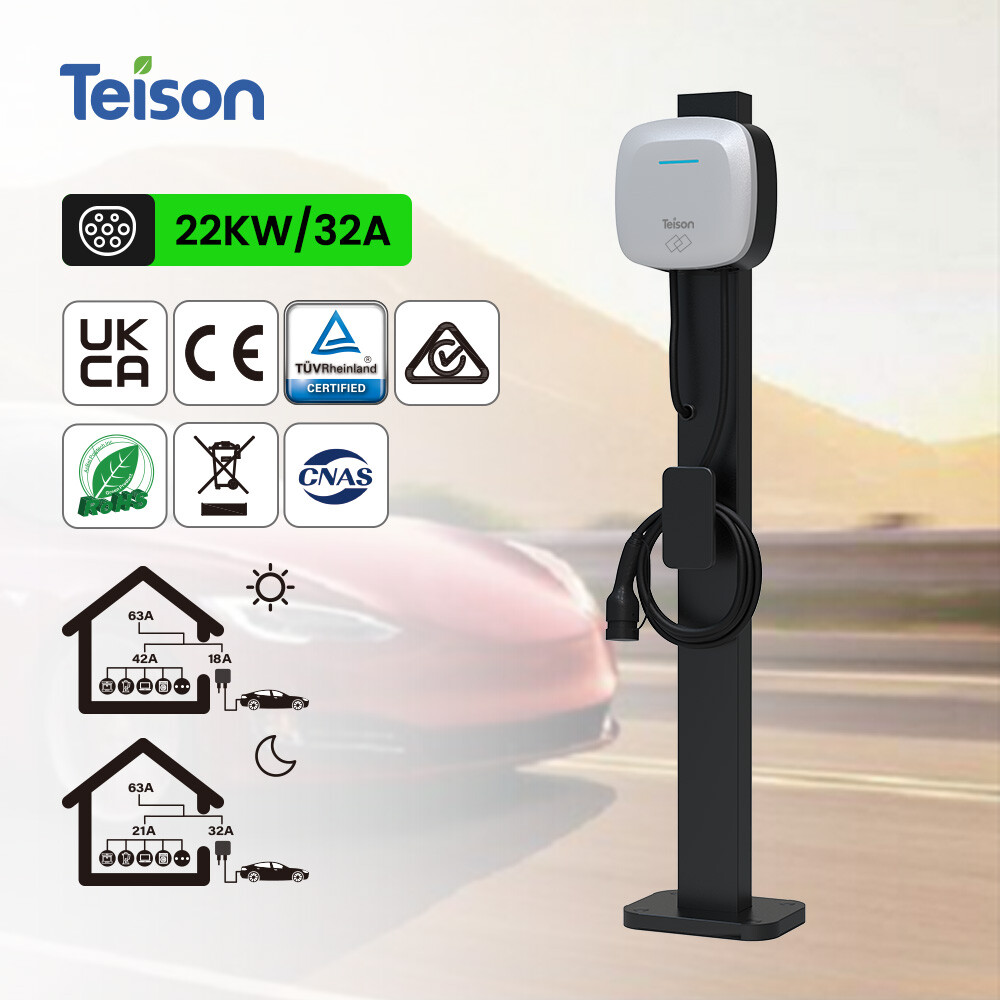

| Installation Method | Wall-mount/Floor-stand | ||
| Communication Protocol | OCPP 1.6J-SON | ||
| Safety Standard | EN IEC61851-21-2:2021;EN IEC61000-6-1:2019;EN IEC61000-6-2:2019; | ||
| EN IEC61000-6-3:2021;EN IEC61851-1:2019;EN IEC61000-6-4:2019; | |||
| ETSI EN300 328 V2.2.2:2019;ETSI EN 300 330 V2.1.1:2017; | |||
| ETSI EN301 489-1 V2.2.3:2019;ETSI EN301 489-3 V2.1.1:2019; | |||
| ETSI EN301 489-17 V3.2.4:2020;EN IEC62311:2020;IEC61851-1:2017 | |||
| Warranty | 2 years | ||
| Environmental Performance | |||
| Protection Level | IP65 | ||
| Working Altitude | ＜2000M | ||
| Application Site | Indoor/Outdoor | ||
| Working temperature | -30℃-+50℃ | ||
| Working humidity | 5%-95%.No condensation | ||
| Atmospheric pressure | 80kPa-101kPa | ||
| Functionality | |||
| Network Cateway | Bluetooth and WIFI as default | ||
| Mobile APP | Scheduled charging、Start charging.Stop charging. | ||
| Ues and Android supported) | Current adjustment (memorable),plug and play charging | ||
| functions under Bluetooth | switch on APP、Charging status shown on APP | ||
| Added APP functions under WIFI/4G | Charging records shown on mobile APP、view and update | ||
| the PIN code.firmware updating function(OTA),multiple | |||
| wallbox control | |||
| Packing Details | |||
| Product Size | 228.5*228.5*100mm | ||
| Product Weight | 4.4KG | 5.2KG | 5.4KG |
| Optional canfig | |||
| Residual curent protection | TYPE B(AC 30MA+DC 6MA)as optional | ||
| Network Cateway | 4G as optional | ||
| O-PEN detection | as optional | ||
| RFID | as optional ( with 3 RFID cards) | ||
| Load balance | RS485 meter/CT-Clamp as optional | ||
| Installation method | Stand-pile | ||
